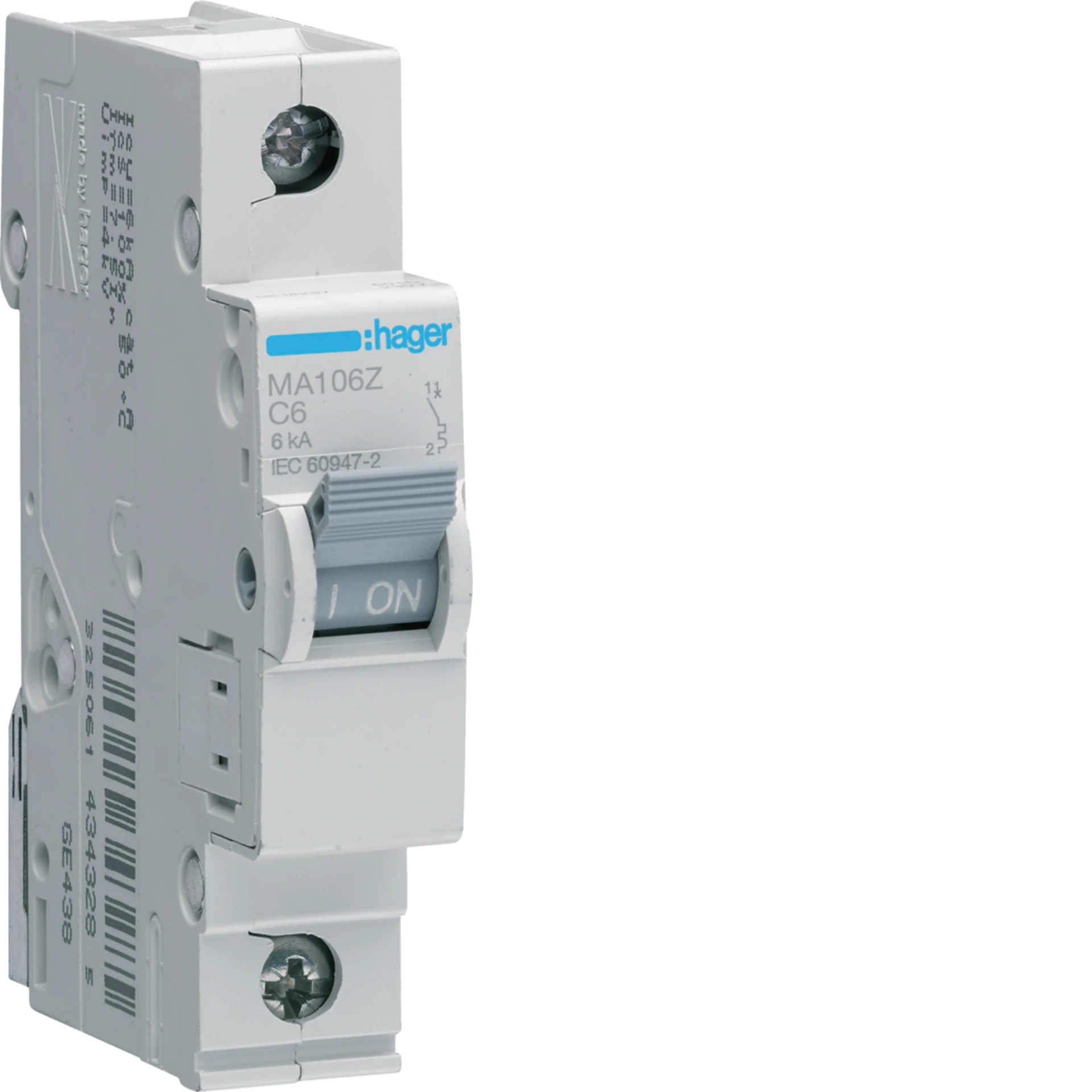

Hager MA-Series MCB
| Brand | Hager |
| Series | MA |
| Breaking Capacity | 6kA |
| Tripping Curve | B / C / D |
| Voltage | 230/400V AC |
| Mounting | DIN rail 35mm |
| Standards | IEC 60898 |
Available Configurations
- 1P: 2A–63A (single-phase)
- 2P: 2A–63A (single-phase + neutral)
- 3P: 2A–63A (three-phase)
- 4P: 2A–63A (three-phase + neutral)
Tripping Curves
- B-curve (3–5× In): Sensitive — long cable runs, resistive loads
- C-curve (5–10× In): General purpose — lighting, sockets, small motors
- D-curve (10–20× In): High inrush — transformers, large motors
Key Features
- 6kA breaking capacity — residential and light commercial protection
- Multiple tripping curves for varied applications
- DIN rail mount — quick snap-fit installation
- Compact design — 1 module per pole (18mm)
Applications
- Residential distribution boards
- Light commercial installations
- Lighting and socket circuits
- General purpose circuit protection
Alternative Products
These other products might interest you
Specifications
| Electrical / Distribution and Protection / Miniature Circuit Breakers | |
|---|---|
| Poles | 1P, 2P, 3P, 4P |
| Electrical Properties | |
|---|---|
| Rated Current | 2A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Breaking Capacity | 6kA |
| Others | |
|---|---|
| Series Name | MA |
| 17.5mm Unit Size | 1 |
