MCB | Hager | NCN-Series

MCB | Hager | NCN-Series

(0 review)

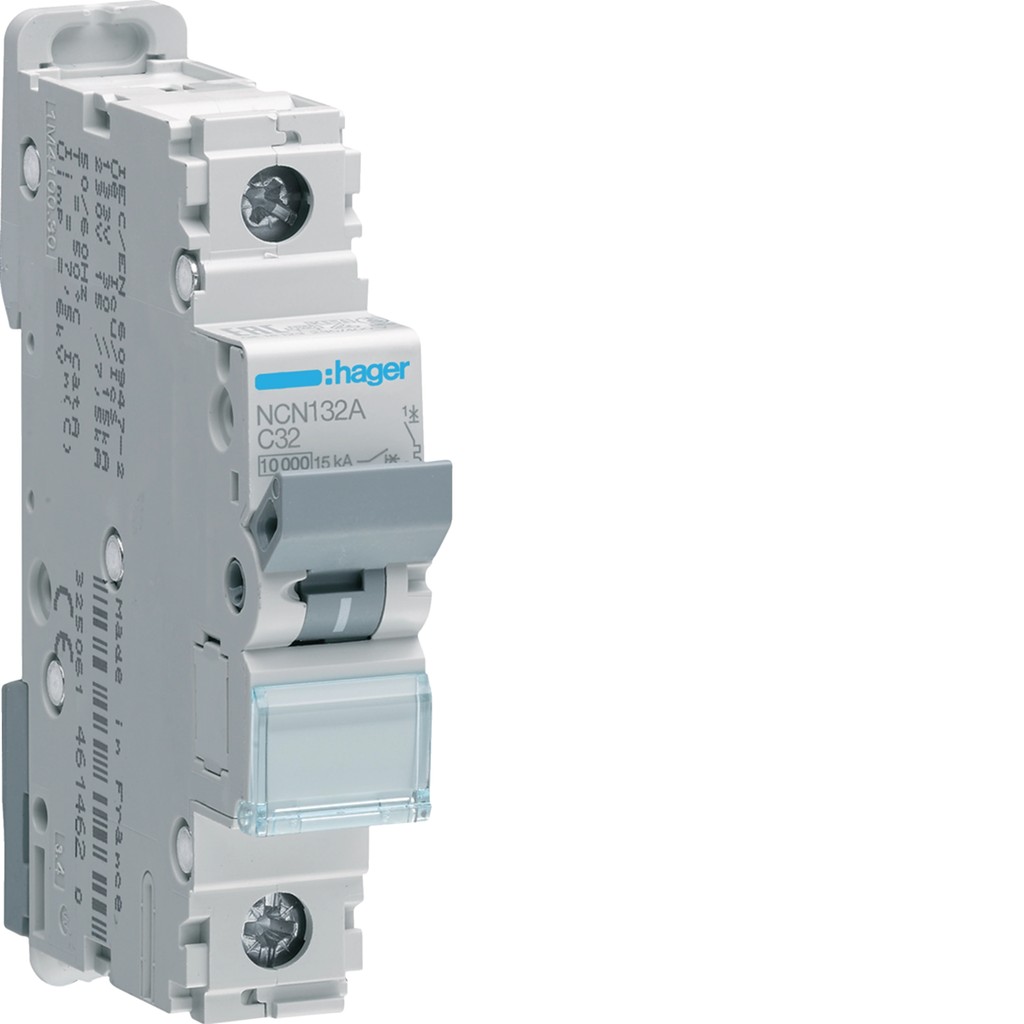

Hager NCN-series miniature circuit breaker with 15kA breaking capacity, C-curve tripping. DIN rail mount, IEC 60898 compliant. Available in 1P–4P configurations with current ratings from 6A to 63A.

R 277.15 R 277.15 (Tax included)

  • Breaking Capacity
  • Rated Current
  • Series Name
  • 17.5mm Unit Size
  • Poles
Add to cart
Add to wishlist
Terms and Conditions

Shipping: 2-3 Business Days

Hager NCN-Series MCB

BrandHager
SeriesNCN
Breaking Capacity15kA
Tripping CurveC (5–10× In)
Voltage230/400V AC
MountingDIN rail 35mm
StandardsIEC 60898

Available Configurations

  • 1P: 6A–63A (single-phase)
  • 2P: 6A–63A (single-phase + neutral)
  • 3P: 6A–63A (three-phase)
  • 4P: 6A–63A (three-phase + neutral)

Key Features

  • 15kA breaking capacity — high fault current protection
  • C-curve tripping — general purpose circuits with moderate inrush currents
  • DIN rail mount — quick snap-fit installation
  • Compact design — 1 module per pole (18mm)

Applications

  • Residential distribution boards
  • Commercial power distribution
  • Industrial circuit protection
  • Lighting and socket circuits

Specifications

Electrical / Distribution and Protection / Miniature Circuit Breakers
Poles 1P, 2P, 3P, 4P
Electrical Properties
Rated Current 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Breaking Capacity 15kA
Others
Series Name NCN
17.5mm Unit Size 1

Pictures and images  are for demonstration purposes only. The real product appearance may differ from the illustrated image.
