Plugs & Sockets
Plugs & Sockets
From industrial power connectors to high-current DC battery terminals — browse our complete range of plugs, sockets, switches, and distribution assemblies.
Amphenol SurLok Plus
High-Current DC Battery Connectors — 100A to 350A, 1000V–1500V
SurLok Plus Range
| Series | Current | Voltage | Cable / Stud | Products |
|---|---|---|---|---|
| CN06 | 100–120A | 1000V DC | 16–25mm² / M5–M6 | 4 Plugs · 8 Sockets · 6 Cables |
| CN08 | 150–200A | 1500V DC | 35–50mm² / M6–M8 | 4 Plugs · 8 Sockets · 6 Cables |
| CN12 | 250–350A | 1500V DC | 70–120mm² / M8–M10 | 6 Plugs · 8 Sockets · 6 Cables |
Choosing the Right Termination
Amphenol SurLok Plus sockets are available in four termination types. All share the same external appearance — the difference is internal conductor connection.
⬤ Threaded Bar (M)
Stud passes straight through — most common for bus bars and flat terminals.
⬤ Outer Thread (LD)
Stud inserts from outside. External threads for through-panel mounting.
⬤ Inner Thread (LM)
Stud screws in from inside — flush mount, ideal for confined spaces.
⬤ Crimp (H)
Direct cable crimp — no stud required. Best for permanent assemblies.
Colour Coding
Orange — Positive (+)
Positive DC connections. Immediately visible for safety checks.
Black — Negative (−)
Negative DC connections. Standard colour for ground and return paths.
Applications
Compatibility Matrix
All plugs and sockets within the same series are compatible — any termination type socket mates with any plug of the same size and colour. Pre-assembled cables include the connector already attached.
| Series | Plugs | Sockets | Cables | Mates With |
|---|---|---|---|---|
| CN06 | 4 | 8 | 6 | All CN06 plugs ↔ all CN06 sockets |
| CN08 | 4 | 8 | 6 | All CN08 plugs ↔ all CN08 sockets |
| CN12 | 6 | 8 | 6 | All CN12 plugs ↔ all CN12 sockets |

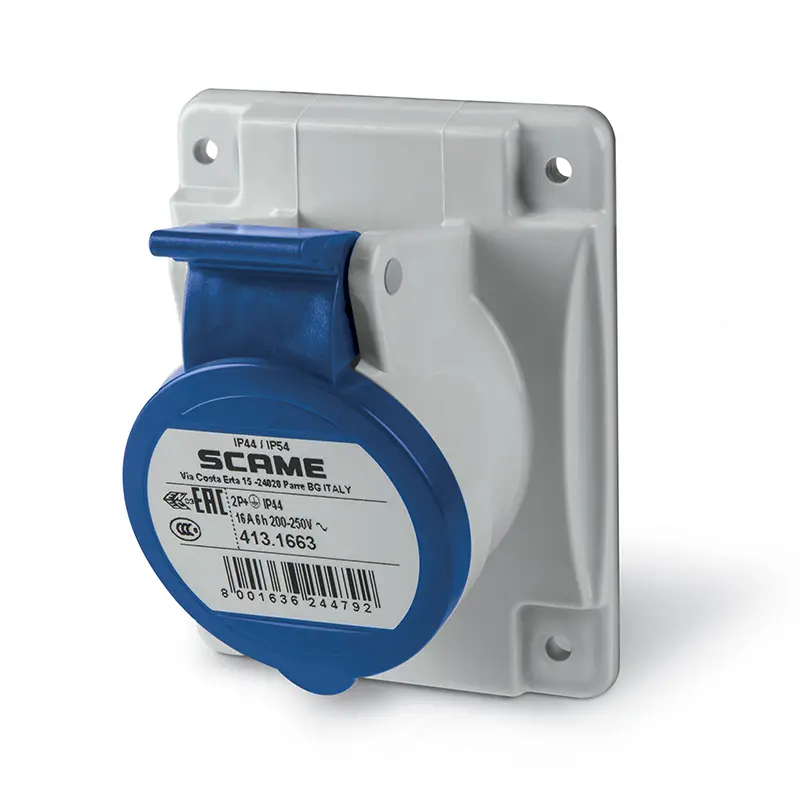

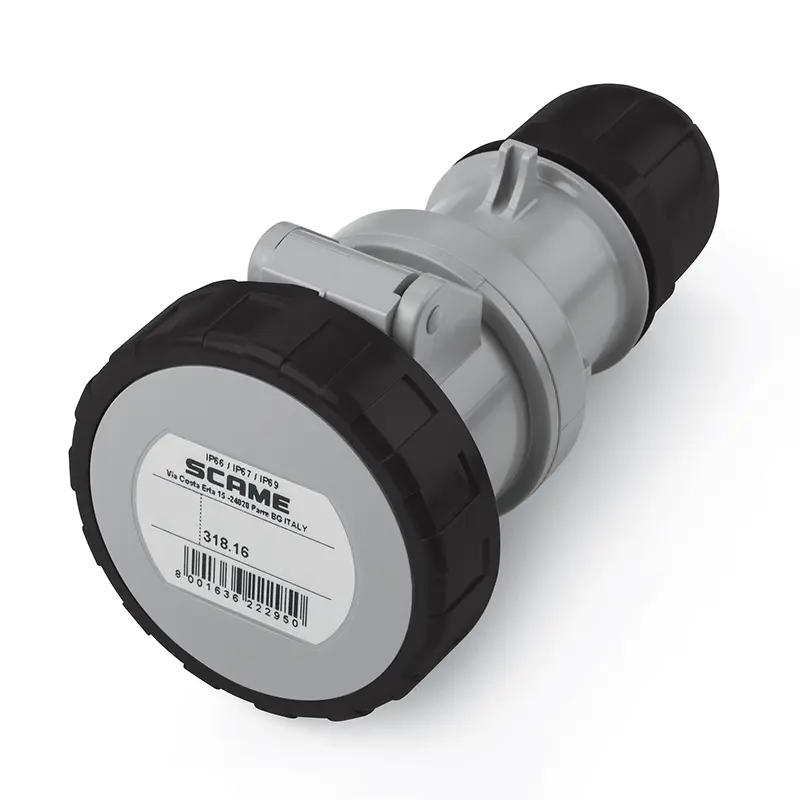

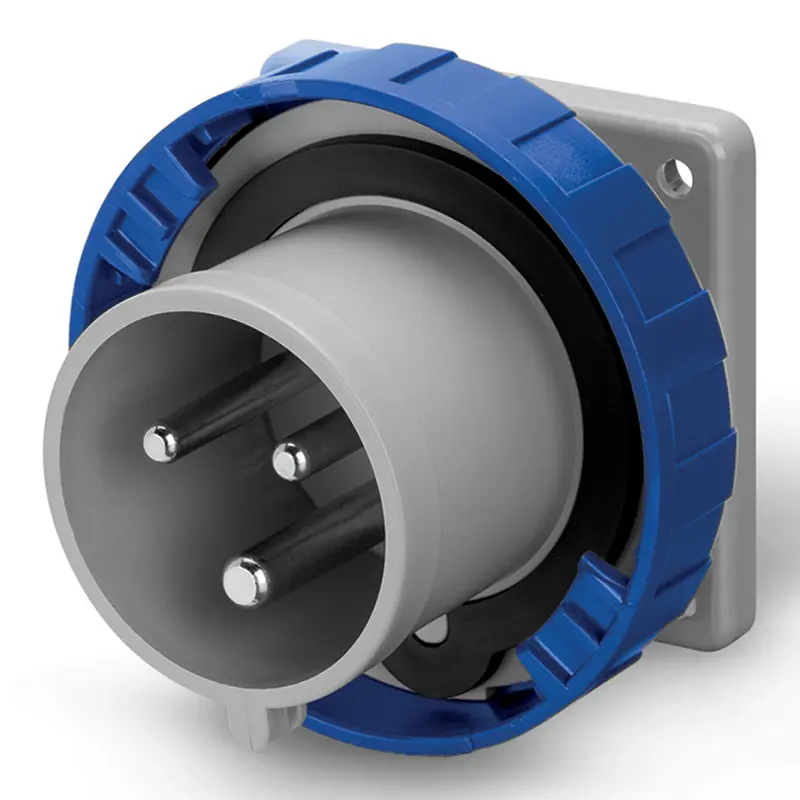

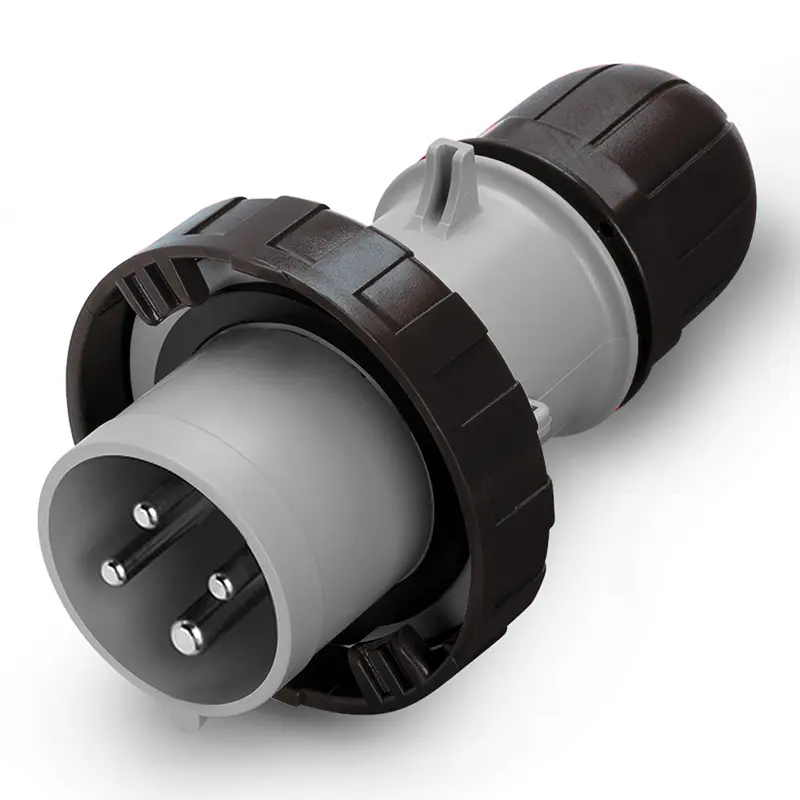

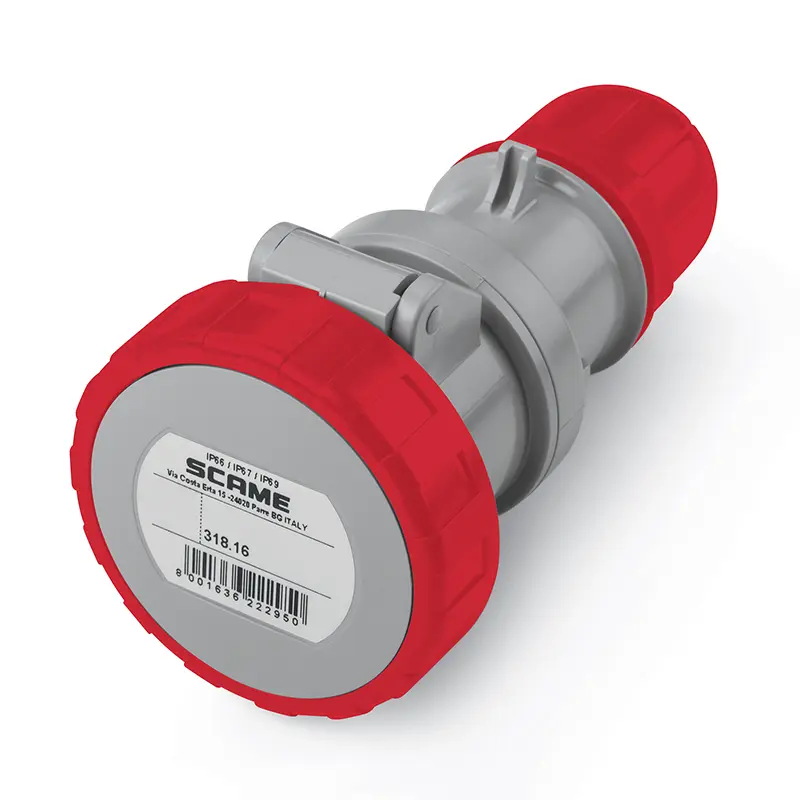

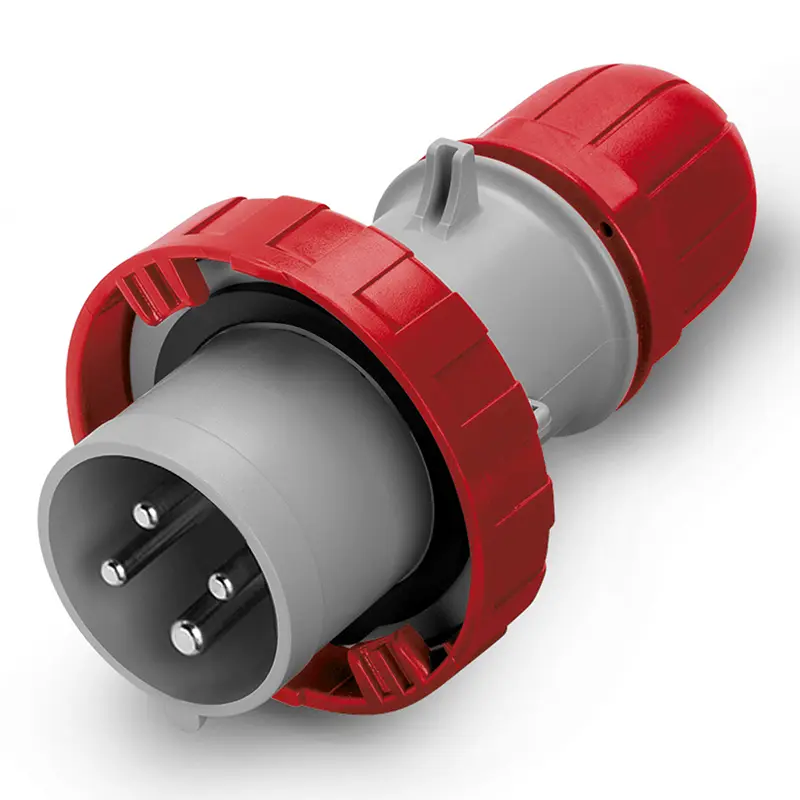

Industrial & Residential Plugs & Sockets
We also stock a full range of IEC-standard industrial and residential plugs, sockets, switches, and distribution assemblies — from 16A to 125A, IP44 to IP67 rated.
Need help choosing the right connector?
Contact us for expert advice on your DC battery connection requirements.
