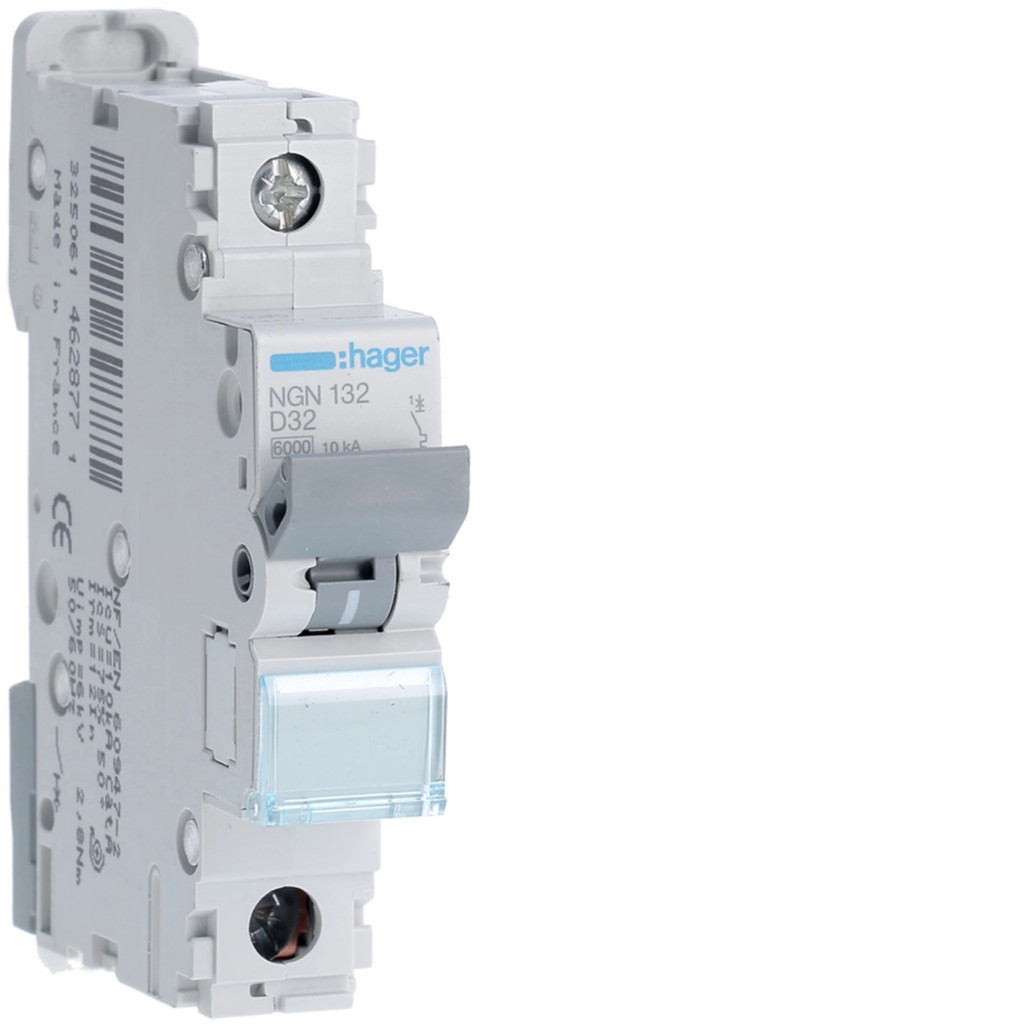

Hager NGN-Series MCB
| Brand | Hager |
| Series | NGN |
| Breaking Capacity | 10kA |
| Tripping Curve | D (10–20× In) |
| Voltage | 230/400V AC |
| Mounting | DIN rail 35mm |
| Standards | IEC 60898 |
Available Configurations
- 1P: 2A–63A (single-phase)
- 2P: 2A–63A (single-phase + neutral)
- 3P: 2A–63A (three-phase)
- 4P: 2A–63A (three-phase + neutral)
Key Features
- 10kA breaking capacity — standard fault current protection
- D-curve tripping — high inrush current applications
- DIN rail mount — quick snap-fit installation
- Compact design — 1 module per pole (18mm)
Applications
- Motor and transformer circuits
- Industrial circuit protection
- High inrush current equipment
- Welding and compressor circuits
Alternative Products
These other products might interest you
Specifications
| Electrical / Distribution and Protection / Miniature Circuit Breakers | |
|---|---|
| Poles | 1P, 2P, 3P, 4P |
| Electrical Properties | |
|---|---|
| Rated Current | 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Breaking Capacity | 10kA |
| Others | |
|---|---|
| Series Name | NGN |
| 17.5mm Unit Size | 1 |
| Tripping Curve | D |
