Miniature Circuit Breakers
Hager Miniature Circuit Breakers
From residential DB boards to industrial distribution panels — Hager MCBs in three breaking capacity ratings, all C-curve for general-purpose circuit protection.
Which Series Do You Need?
| Series | Breaking Capacity | Poles | Current Ratings | Best For | From |
|---|---|---|---|---|---|
| MV | 3kA | 1P | 6–40A | Residential lighting and socket circuits | R103.50 |
| MA | 6kA | 1P–4P | 2–63A | Commercial and light industrial distribution | Enquire |
| NCN | 15kA | 1P–4P | 6–63A | Industrial and high fault-current applications | R266.80 |
MV-Series — 3kA Residential MCB
Hager MV-series 1-pole MCBs with 3kA breaking capacity. Cost-effective circuit protection for residential DB boards and light commercial installations. C-curve tripping for general-purpose circuits.
| Breaking Capacity | 3kA |
| Poles | 1P |
| Tripping Curve | C (5–10x In) |
| Mounting | DIN rail 35mm |
| Price | R103.50 (all ratings) |

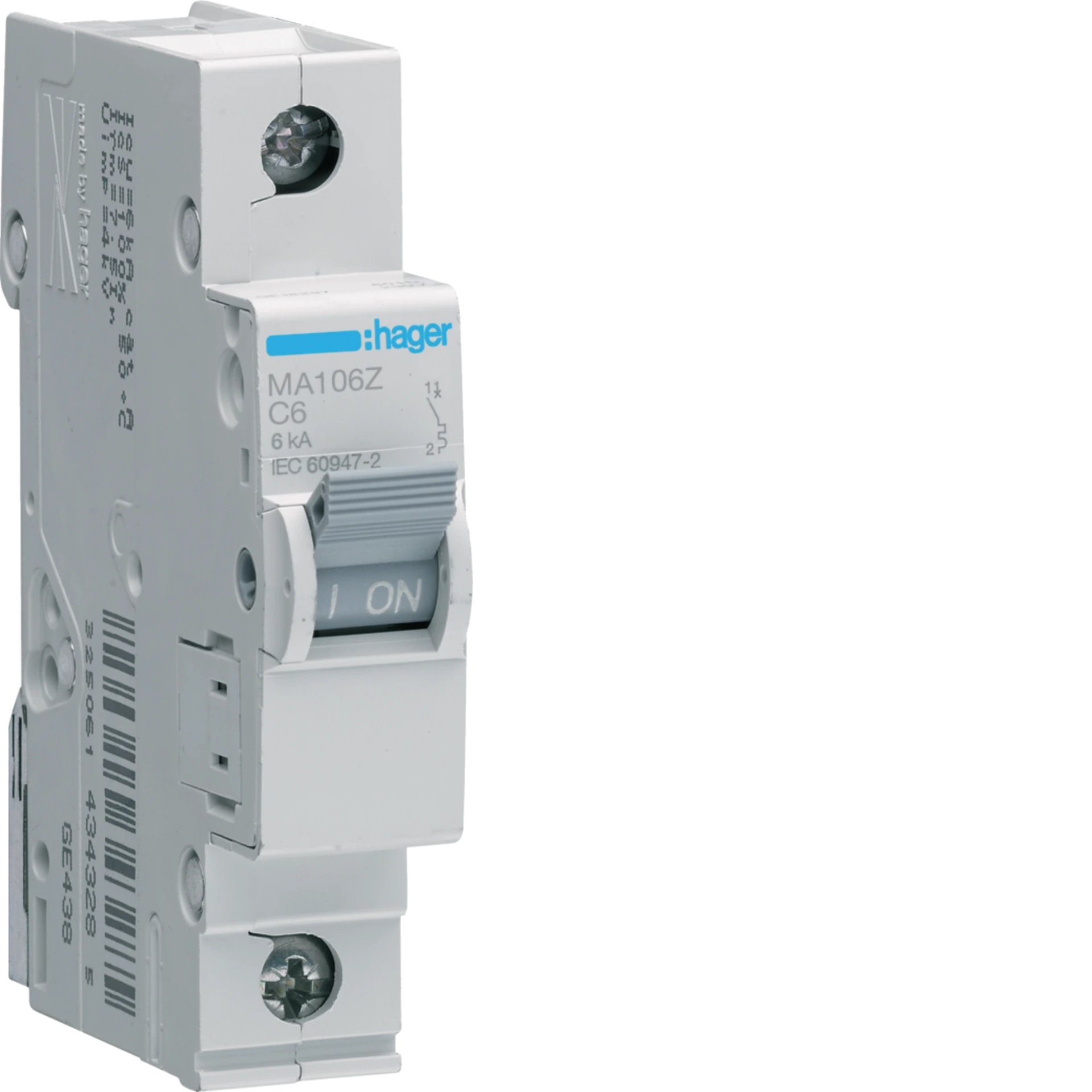

MA-Series — 6kA Commercial MCB
Hager MA-series MCBs with 6kA breaking capacity. Configurable in 1P to 4P, with B, C, and D tripping curve options. Suitable for commercial and light industrial distribution where moderate fault currents are expected.
| Poles | Current Ratings | Curve Options |
|---|---|---|
| 1P | 2–63A | B, C, D |
| 2P | 2–63A | B, C, D |
| 3P | 2–63A | B, C, D |
| 4P | 2–63A | B, C, D |
| Breaking Capacity | 6kA |
| Tripping Curves | B (3–5x In), C (5–10x In), D (10–20x In) |
| Mounting | DIN rail 35mm |
| Standards | IEC 60898 |

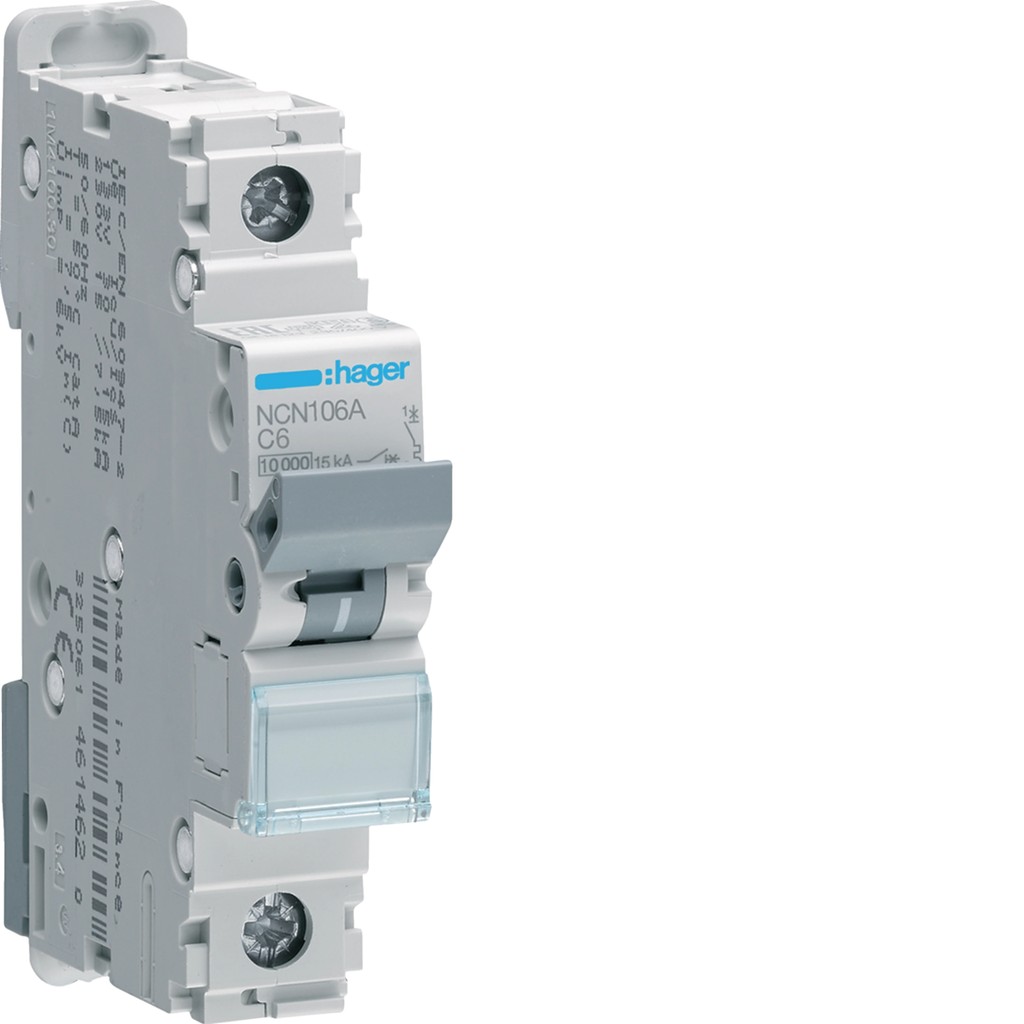

NCN-Series — 15kA Industrial MCB
Hager NCN-series MCBs with 15kA breaking capacity — Hager's premium MCB range for high fault-current applications. C-curve, 1P to 4P, from 6A to 63A. Available off the shelf with immediate dispatch.
| Poles | Current Ratings | Price Range |
|---|---|---|
| 1P | 6, 10, 16, 20, 25, 32, 40, 50, 63A | R266.80 – R365.70 |
| 2P | 6, 10, 16, 20, 25, 32, 40, 50, 63A | R713.00 – R963.70 |
| 3P | 6, 10, 16, 20, 25, 32, 40, 50, 63A | R1,265 – R1,472 |
| 4P | 6, 10, 16, 20, 25, 32, 40, 50, 63A | R2,311.50 – R2,507 |
| Breaking Capacity | 15kA |
| Tripping Curve | C (5–10x In) |
| Mounting | DIN rail 35mm |
| Standards | IEC 60898 |
What is a C-Curve MCB?
C-curve MCBs trip at 5–10x the rated current. They are the most common type for general-purpose circuits — suitable for resistive loads (lighting, heaters) and small motors with moderate inrush currents.
B-Curve (3–5x In)
Sensitive — for long cable runs, resistive loads with low inrush. Available in MA-series.
C-Curve (5–10x In)
General purpose — lighting, socket outlets, small motors. Available in all series.
D-Curve (10–20x In)
High inrush — transformers, large motors, welding equipment. Available in MA-series.
